Twin EC Fandecks

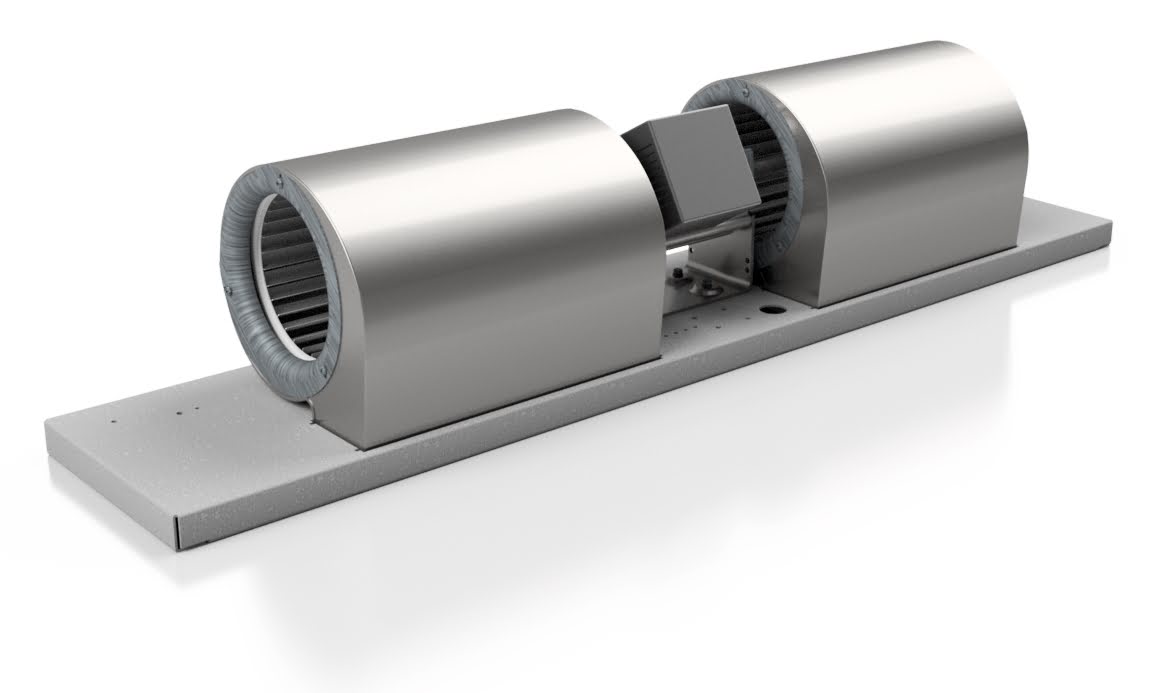

This type of product consists of multiple double-inlet blower units mounted on a supporting deck-plate. The blowers are all driven by a single EC motor mounted between the blower housings. Fandeck models typically consist of two blower units running in tandem, but can also consists of three blowers driven by the same motor. Our highly efficient EC Fandeck range is powered by intelligent, controllable, energy saving EC motors that are supplied with full on-board drive electronics.
Custom Solutions
We offer a fully flexible approach to manufacturing Fandecks. Deck-plates are all unique to each customer specification, as can be the size of housing and impellers specified as well their mounting positions.
- Cost effective solution
- EC technology
- Lowest specific fan power
- Whisper Quiet
- Constant speed operation with integrated protection features and electrical alarm / tachometer output
Technical Data Overview
| Model | Supply (V/Ph/Hz) | Max Airflow (m³/h) | Max Current (A) | Max Input Power (W) | Max Speed (rpm) | ErP Efficiency Rating (FMEG) | IP Rating | Motor Insulation Class | Temperature Range (°C) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 133-222 | 230 / 1 / 50 | 1342 | 1.3 | 200 | 1560 | NA | 20 | F | -20 to +50 | TBC |
| 146-222 | 230 / 1 / 50 | 1850 | 1.9 | 258 | 1550 | NA | 20 | F | -20 to +50 | TBC |
| 160-222 | 230 / 1 / 50 | 1907 | 2 | 260 | 1550 | NA | 20 | F | -20 to +50 | TBC |
