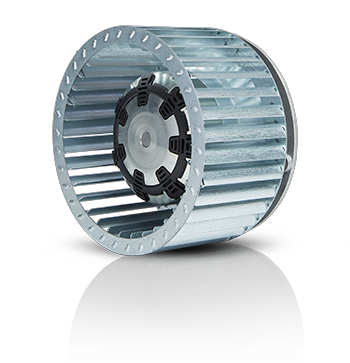

EC Forward and Backward Curved 90W
Our EC motorised impellers utilise the latest three-core technology, ensuring best in class efficiency levels as well as whisper quiet operation. This range of EC centrifugal motorised impellers and fans is optimised to provide aerodynamic efficiency and low acoustic noise at the higher static pressures encountered in today's ventilation applications.
- Lower speed of operation than backward curved fans
- Compact impeller design
- Cost-effective pressed steel or aluminium construction
- Can be used for high temperature applications
Technical Data Overview
Forward Curved 120mm | Forward Curved 140mm | Forward Curved 146mm | Forward Curved 160mm | Backward Curved (43W) 133mm | Backward Curved 175mm | Backward Curved 190mm | Backward Curved (HF) 190mm | Backward Curved 225mm | |
---|---|---|---|---|---|---|---|---|---|
Supply Voltage (V/Ph/Hz) | 230 / 1 / 50 | 230 / 1 / 50 | 230 / 1 / 50 | 230 / 1 / 50 | 230 / 1 / 50 | 230 / 1 / 50 | 230 / 1 / 50 | 230 / 1 / 50 | 230 / 1 / 50 |
Max Airflow | 314 | 390 | 337 | 442 | 232 | 672 | 511 | 690 | 704 |
Max Current | 0.6 | 0.81 | 0.79 | 0.78 | 0.38 | 0.71 | 0.79 | 0.73 | 0.75 |
Max Input Power | 59 | 85 | 84 | 81.2 | 45.6 | 85 | 89 | 76 | 83.2 |
Max Speed | 3600 | 3000 | 3000 | 3000 | 5050 | 4100 | 3750 | 3750 | 2520 |
ErP Efficiency Rating (FMEG) | 56 | 52 | 56 | 54 | 52 | 73 | 60 | 60 | 64 |
Ip Rating | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 |
Motor Insultation Class | B | B | B | B | B | B | B | B | B |
Temperature Range °C | -20 to +60 | -20 to +60 | -20 to +60 | -20 to +50 | -20 to +60 | -20 to +60 | -20 to +60 | -20 to +60 | -20 to +60 |
Weight (KG) | 0.91 | 1.07 | 1.11 | 1.17 | 0.56 | 0.9 | 0.95 | 0.95 | 1.35 |
