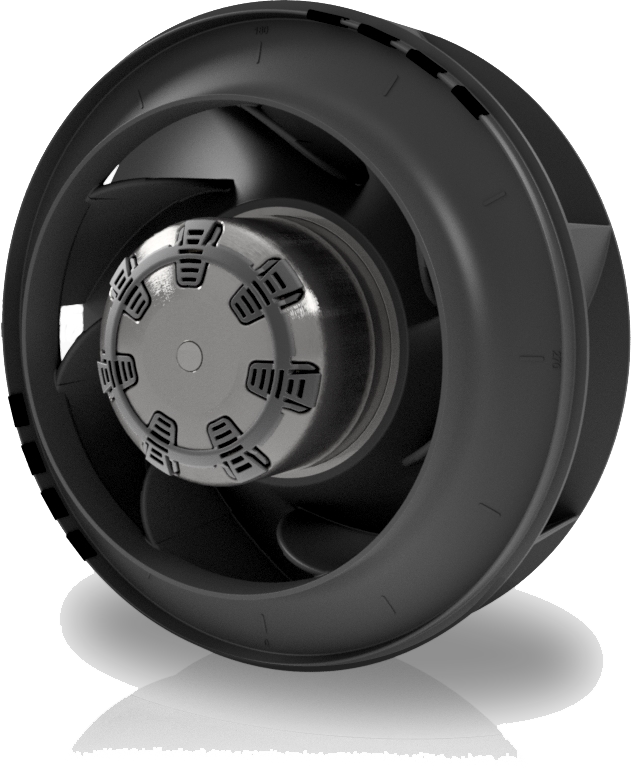

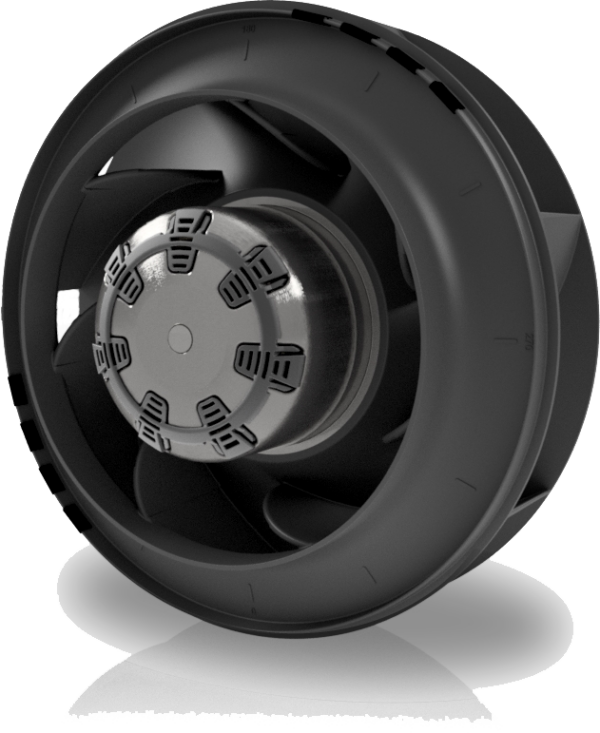

EC Forward and Backward Curved 170W

Our EC motorised impellers utilise the latest three-core technology, ensuring best in class efficiency levels as well as whisper quiet operation. This range of EC centrifugal motorised impellers and fans is optimised to provide aerodynamic efficiency and low acoustic noise at the higher static pressures encountered in today’s ventilation applications.





  • Lower speed of operation than backward curved fans
  • Compact impeller design
  • Cost-effective pressed steel or aluminium construction
  • Can be used for high temperature applications

Technical Data Overview

Forward Curved 146mm Forward Curved 160mm Backward Curved 190mm Backward Curved 225mm Single-Inlet 146mm Single-inlet 160mm Cassette Frame 190mm Cassette Frame 225mm
Supply Voltage (rms) 198 – 264 V 198 – 264 V 198 – 264 V 198 – 264 V 198 – 264 V 198 – 264 V 198 – 264 V 198 – 264 V
Max Airflow 463 m³/h 592 m³/h 869 m³/h 847 m³/h 463 m³/h 592 m³/h 899W m³/h 868 m³/h
Max Current 1.63 A 1.62 A 1.62 A 1.57 A 1.63 A 1.62 A 1.57 A 1.56 A
Max Input Power 186 W 183 W 185 W 176 W 186 W 183 W 181 W 181 W
Max Speed 3000 rpm 3000 rpm 4900 rpm 3300 rpm 3000 rpm 3000 rpm 4900 rpm 3300 rpm
ErP Efficiency Rating (FMEG) 53 60 71 77 53 60 70 74
Ip Rating 54 54 54 54 54 54 54 54
Motor Insultation Class B B B B B B B B
Temperature Range -20°C to +60 °C -20°C to +60 °C -20°C to +60°C -20°C to +60°C -20°C to +60°C -20°C to +60°C -20°C to +60°C -20°C to +60°C
Weight 1.38 kg 1.49 kg 1.46 kg 1.72 kg 2.40 kg 2.60 kg 1.91 kg 2.47 kg
Standard Direction of Rotation Clockwise Clockwise Clockwise Clockwise Clockwise Clockwise Clockwise Clockwise
Number of Blades 48 38 7 9 48 38 7 9
Technical Data
