Centrifugal Single Inlet

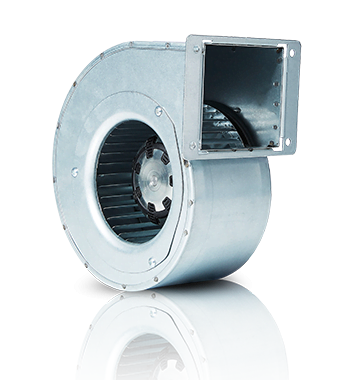

This type of product has a centrifugal fan scroll housing with a motor driven impeller having a single air entry on one side of the fan casing. The type of impeller used can be either a forward curved or backward curved in design.
Custom Solutions
The single-inlet fans can also be adapted to offer customised solutions. Options available can vary from plug type and mounting hole position to fully bespoke designs for specific applications.
- Aerodynamic efficiency
- Low acoustic noise
Technical Data Overview
| Model | Supply (V/Ph/Hz) | Max Airflow (m³/h) | Max Current (A) | Max Input Power (W) | Max Speed (rpm) | ErP Efficiency Rating (FMEG) | Ip Rating | Motor Insulation Class | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| 120mm | na | 314 | 0.6 | 59 | 3600 | 56 | 54 | B | -20 to +60 |
| 140mm | na | 390 | 0.8 | 85 | 3004 | 52 | 54 | B | -20 to +60 |
| 146mm | na | 337 | 0.8 | 85 | 3008 | 56 | 54 | B | -20 to +60 |
| 160mm | na | 442 | 0.8 | 82 | 3000 | 54 | 54 | B | -20 to +50 |
| 200-52mm | na | 509 | 0.69 | 70 | 1400 | 55 | 54 | B | -20 to +50 |
| 200-75mm | na | 552 | 0.63 | 61 | 1400 | 59 | 54 | B | -20 to +50 |

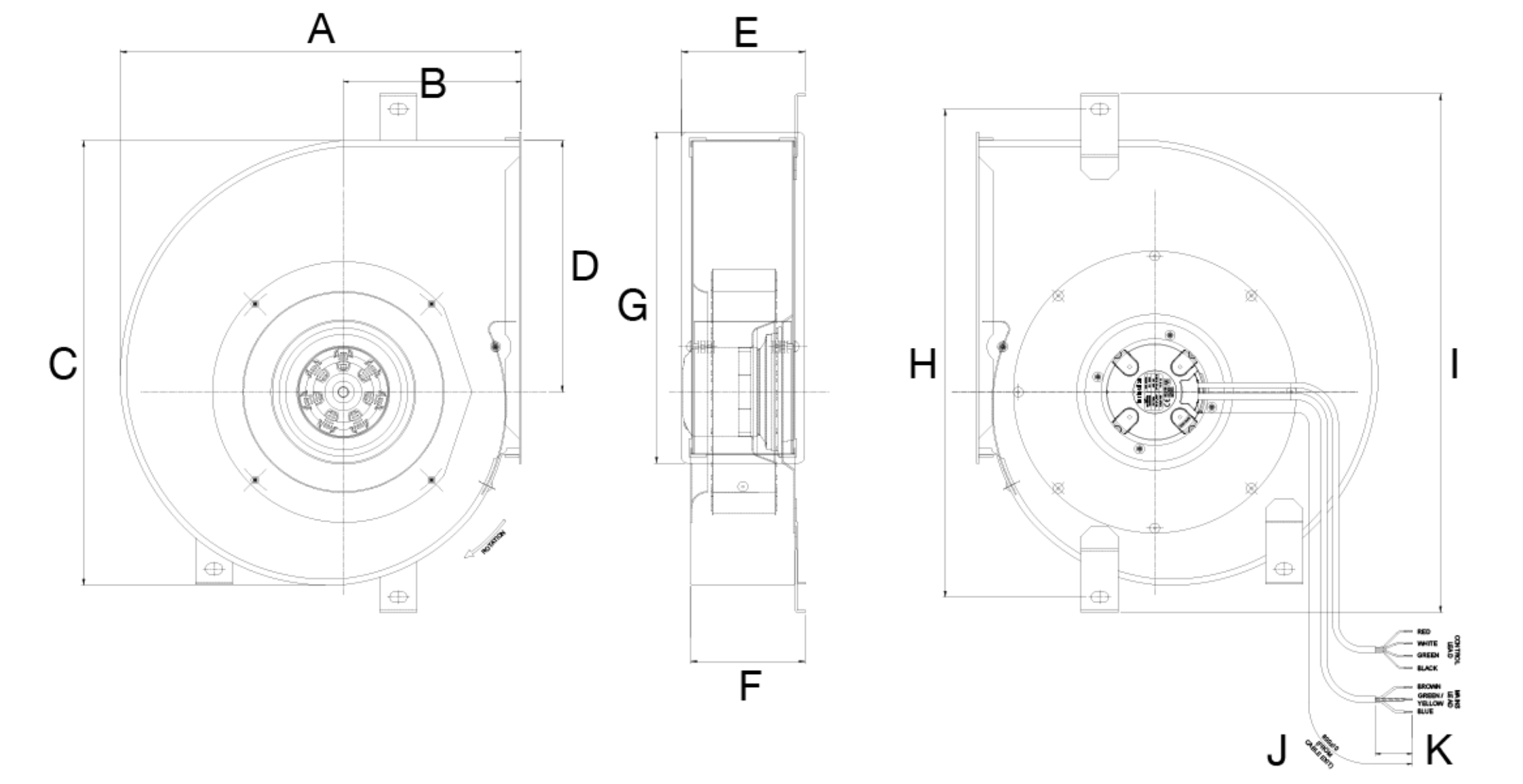

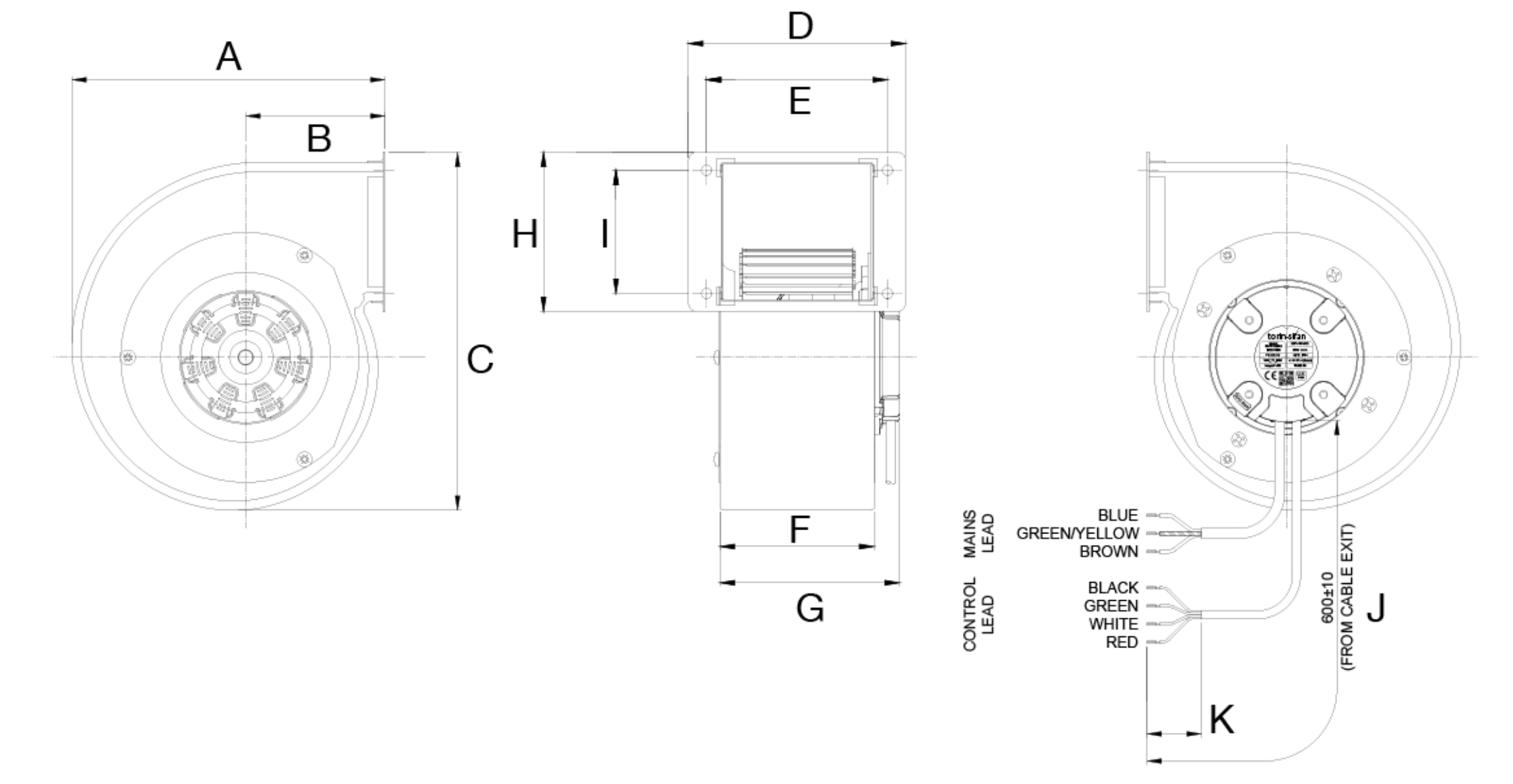

Dimensions (mm)
| Models | A | B | C | D | E | F | G | H | I | J | K | L | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 120mm | 173 | 77 | 198 | 120 | 100 | 85 | 99 | 88 | 68 | 600 | 30 | na | 1.6 |
| 140mm | 209 | 100 | 236 | 135 | 115 | 87 | 102 | 125 | 105 | 600 | 30 | na | 2.1 |
| 146mm | 209 | 100 | 236 | 135 | 115 | 71 | 85 | 125 | 105 | 600 | 30 | na | 2.2 |
| 160mm | 231 | 103 | 269 | 135 | 115 | 86 | 100 | 125 | 105 | 600 | 30 | na | 3 |
| Models | A | B | C | D | E | F | G | H | I | J | K | L | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200-52mm | 326 | 145 | 327 | 205 | 101 | 93 | 270 | 398 | 423 | 600 | 30 | na | 4.25 |
| 200-75mm | 326 | 145 | 363 | 205 | 129 | 113 | 270 | 398 | 423 | 600 | 30 | na | 4.55 |

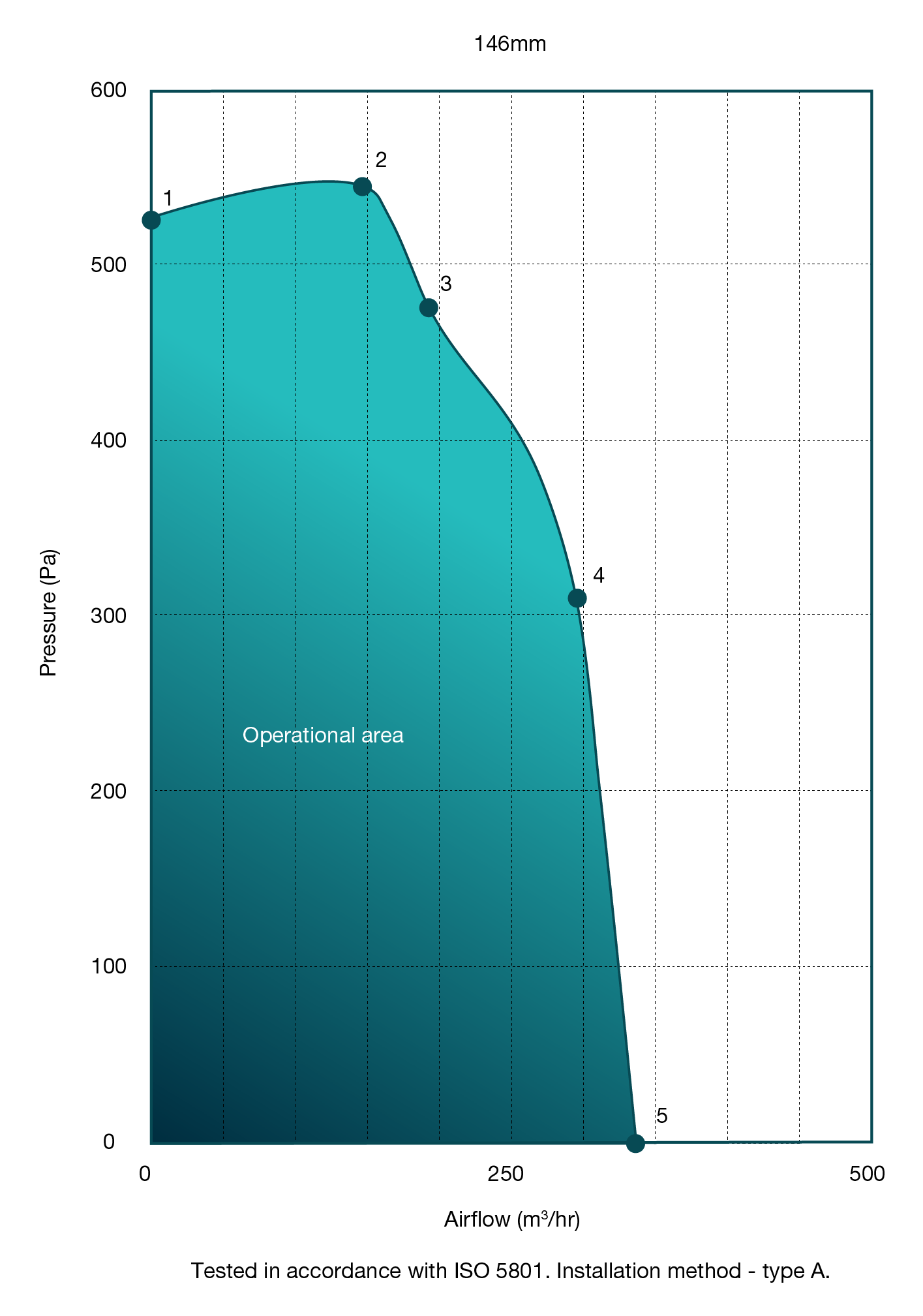

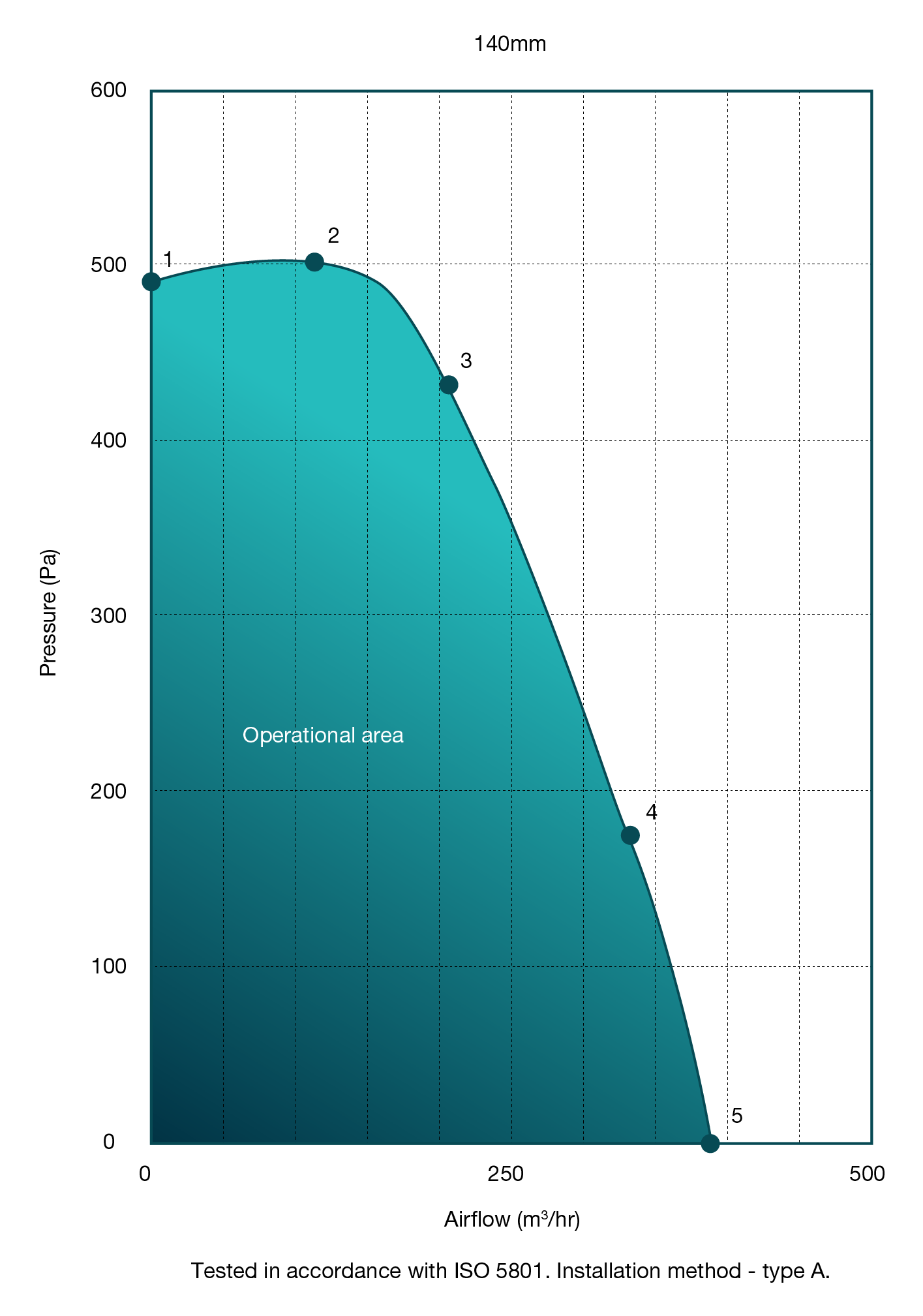

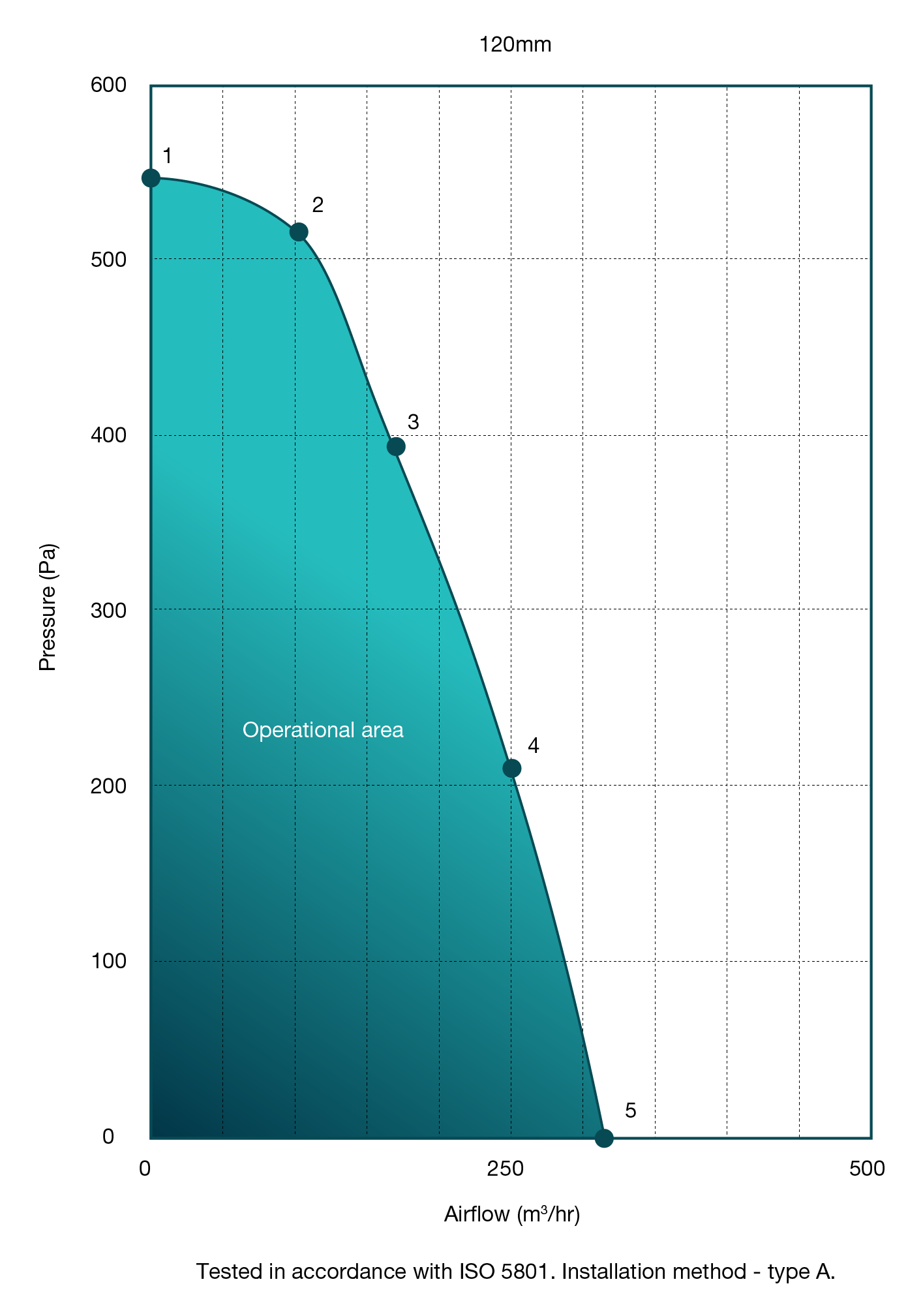

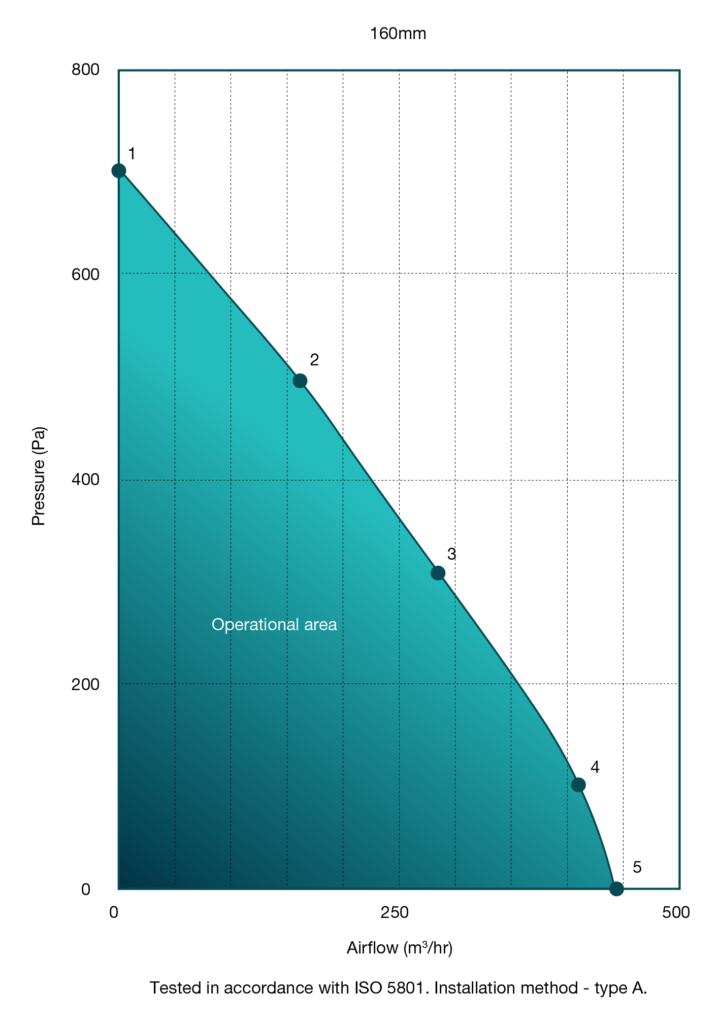

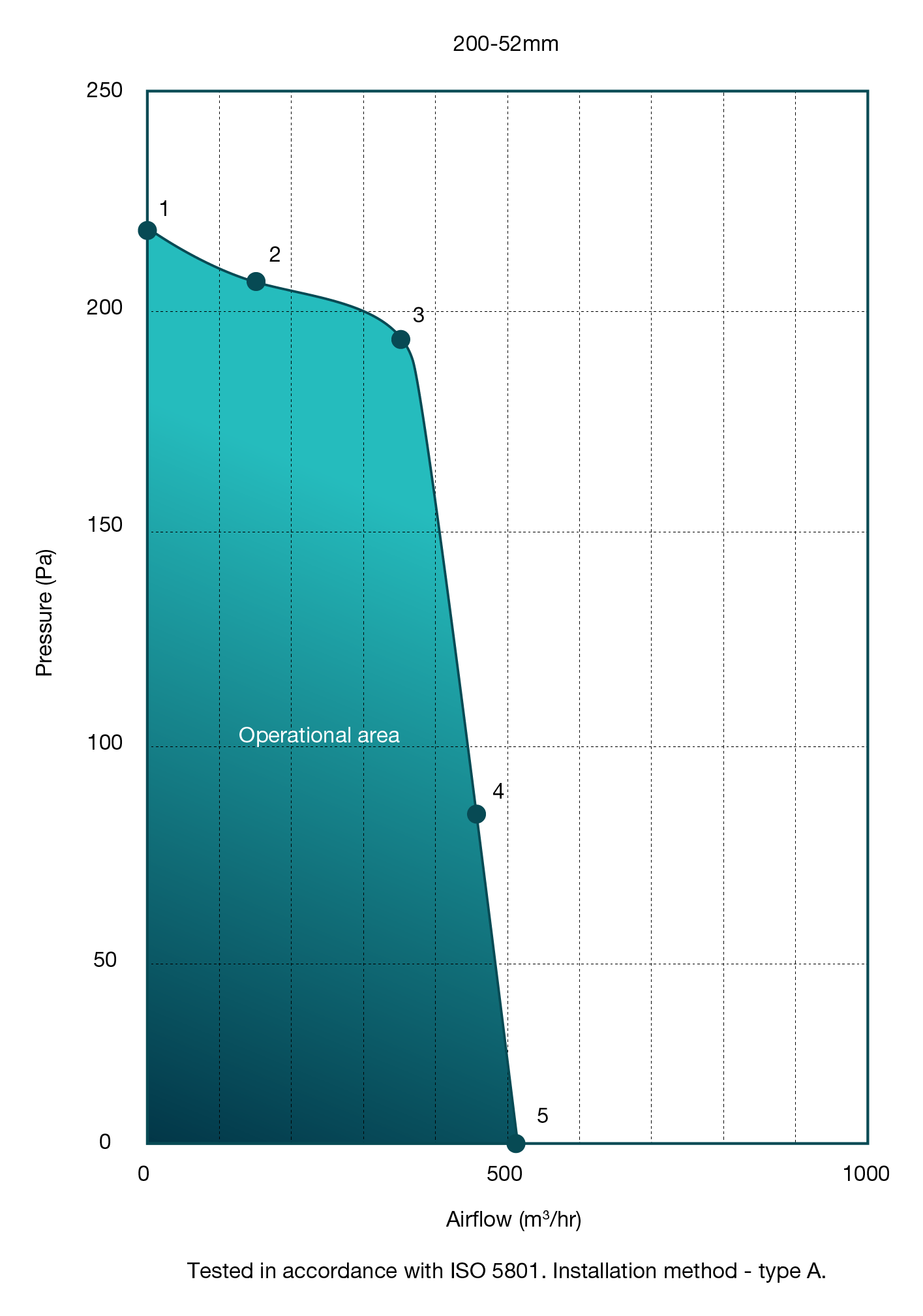

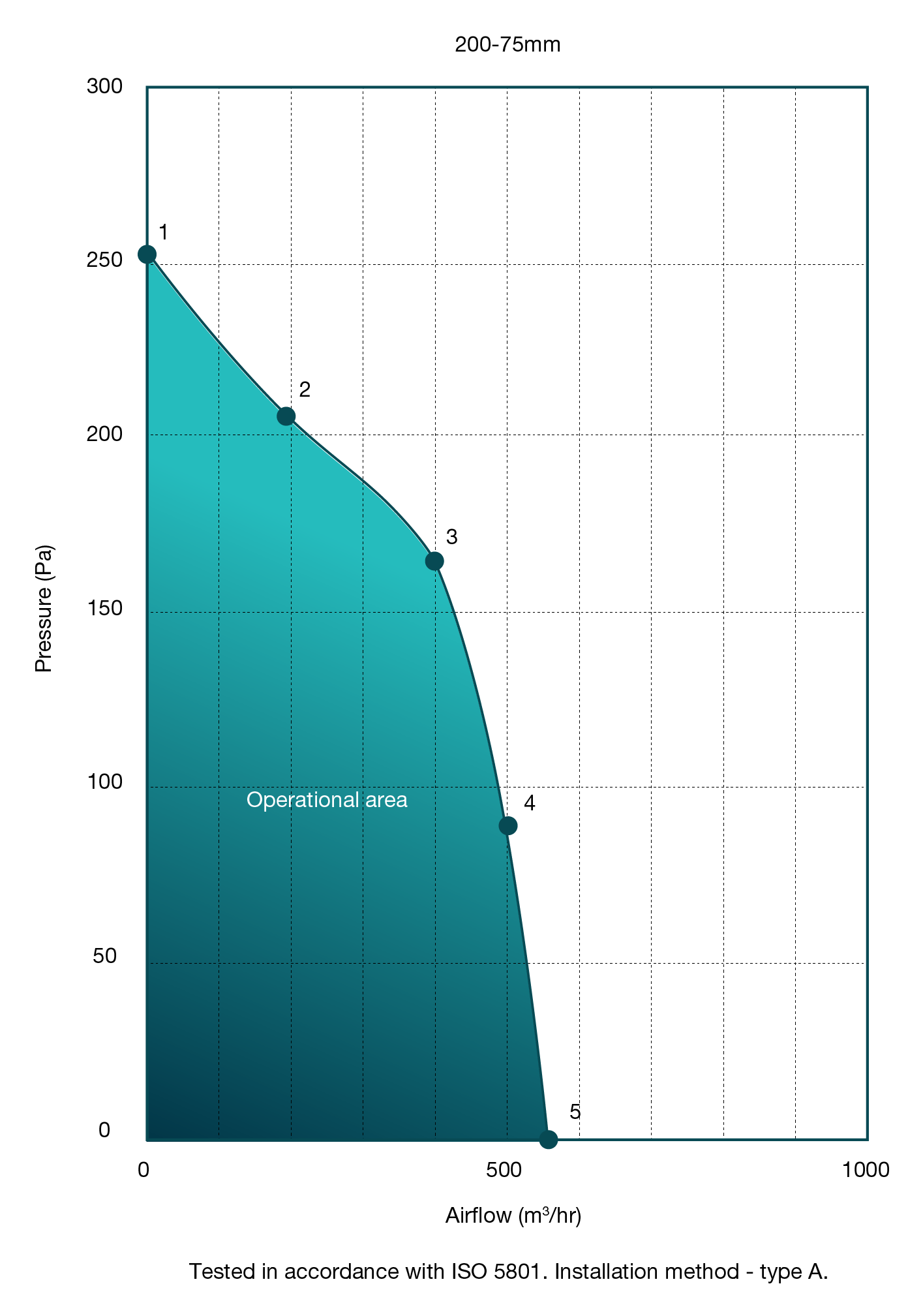

Performance
