Plug Fans

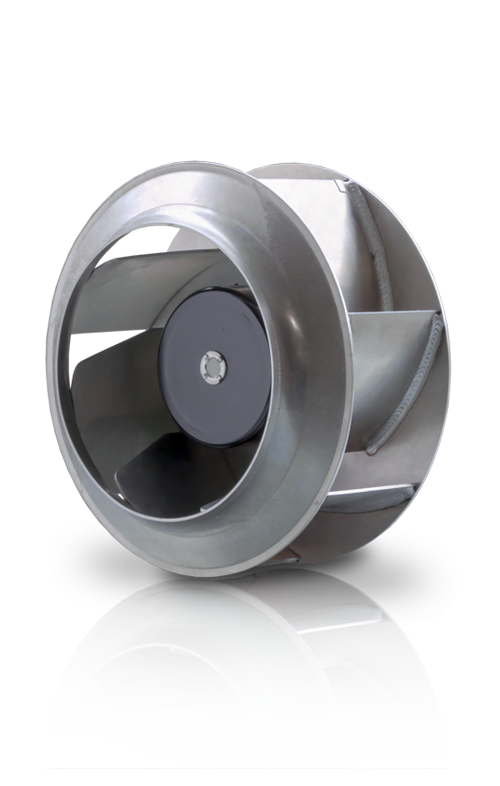

A plug fan is a specifically designed centrifugal fan that can be added to any air-handling unit. Simply ‘Plug and Play’ into your application.
Available in three options:
- Motorised impeller only
- Motorised impeller and inlet ring
- Motorised impeller in metal cassette frame with the front flange facing forwards
Custom Solutions
We want our customers to always get the best from their products, so your requirements are paramount to us. You can benefit from a flexible & tailored set of services on offer. Current examples include – specific housing designs, including material thickness, mounting-hole locations and flange design, lead lengths cut to size and production and balancing of fans within your own product assemblies
- Motors up to 0.8kW
- Impeller diameters up to 400mm
- Available in plug fan mounting configuration
- Utilises the latest three-phase technology
- Best-in-class efficiency
- Whisper quiet operation.
Technical Data Overview
250 mm 530 W | 280 mm 180 W | 310 mm 530 W | 360 mm 500 W | 360 mm 800 W | 400 mm 430 W | 400 mm 800 W | |
---|---|---|---|---|---|---|---|
Supply Voltage (rms) | 200 ~ 277 | 200 ~ 277 | 200 ~ 277 | 200 ~ 277 | 200 ~ 277 | 200 ~ 277 | 200 ~ 277 |
Max. Airflow | 2440 m3/h | 1972 m3/h | 3016 m3/h | 4408 m3/h | 4755 m3/h | 3635 m3/h | 5693 m3/h |
Max. Current | 3.5 A | 1.0 A | 3.5 A | 3.6 A | 4.0 A | 3.1 A | 4.0 A |
Max. Input Power | 530 W | 180 W | 530 W | 500 W | 800 W | 430 W | 800 W |
Inrush Current (t=25 °C) Cold Start | 24.0 A | 15.4 A | 24.0 A | 24.0 A | 24.8 A | 24.0 A | 24.8 A |
Inrush Current (t=25 °C) Hot Start | 43.4 A | 35.1 A | 43.4 A | 43.4 A | 39.7 A | 43.4 A | 39.7 A |
Max. Speed | 3050 rpm | 1850 rpm | 2500 rpm | 1730 rpm | 2030 rpm | 1500 rpm | 1760 rpm |
Erp Efficiency Rating (FMEG) | 67 | 70 | 76 | 73 | 71 | 76 | 76 |
IP Rating | 54 | 54 | 54 | 54 | 54 | 54 | 54 |
Motor Insulation Class | B | B | B | B | B | B | B |
Operational Ambient Temperature Range | -25 °C to +60 °C | -25 °C to +60 °C | -25 °C to +60 °C | -25 °C to +60 °C | -25 °C to +60 °C | -25 °C to +60 °C | -25 °C to +60 °C |
Weight | 5.3 kg | 3.2 kg | 6.3 kg | 7.1 kg | 10.5 kg | 7.2 kg | 11.3 kg |
Standard Direction of Rotation | Clockwise | Clockwise | Clockwise | Clockwise | Clockwise | Clockwise | Clockwise |
Number of Blades | 7 | 9 | 7 | 7 | 7 | 7 | 7 |
