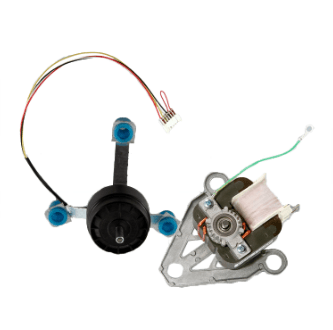

Motors
Our motors can be added to your own fan assembly. We manufacture a range of motor types including:
- AC Shaded-Pole motors
- Brushless low voltage DC motors
- Mains 230 V EC brushless motors
These are available to be purchased either as motor only, or motor assembly including brackets and anti-vibration mounts etc.
Custom Solutions
We can take your free-issue parts and assemble the motor as part of your assembly on our production line. If it creates value for you, then contact us to discuss this.
As well as a standard range, we will work in partnership with you to develop bespoke, application specific motor solutions, allowing you to maintain yourself at the forefront of your market.
Key Features and Benefits
DC/EC Motors:
- Three motor sizes ranging from 53-92 mm outside diameter
- Output powers from 5-170 W
- 12-24-48 V DC, 325 V Hall Effect Only or 230 V EC versions available in both single and 3 core technology.
- EC Versions can have full on-board integrated electronics
- Constant speed, volume or pressure software available
- Locked rotor protection
AC Motors:
- Open-frame shaded-pole motors
- 3-30 W output power
- 19 mm, 25 mm, 32 mm & 38 mm lamination pack height as standard
- Sleeve bearings
- Self-aligning ball bearings
- Controllable via transformer
- Two speeds available
- 110 V/60 Hz & 230 V/50 Hz models available
