EC High Temperature Fans
Our EC high temperature fan handles hot air by either pushing or pulling it through the burner. The fan has been built to withstand temperatures of up to 250°C.
As the requirement for variable speed fans in a modulating system is becoming a requirement in the Commercial/Industrial Heating sector - we have developed a range of High Temperature EC Driven fans.
Custom Solutions
As well as a standard range, we will work in partnership with you to develop bespoke, application specific solutions, allowing you to position yourself at the forefront of your market.
- ERP Compliant
- Variable speed
- Handles hot air up to 250
- Forward curved steel impellers
- Maintenance free ball bearing motors
- Insulation class B
Technical Data Overview
Model | Supply (V/Ph/Hz) | Max Airflow (m³/h) | Max Current (A) | Max Input Power (W) | Max Speed (rpm) | ErP Efficiency Rating (FMEG) | Ip Rating | Motor Insulation Class | Temperature Range (°C) | Weight (KG) |
---|---|---|---|---|---|---|---|---|---|---|

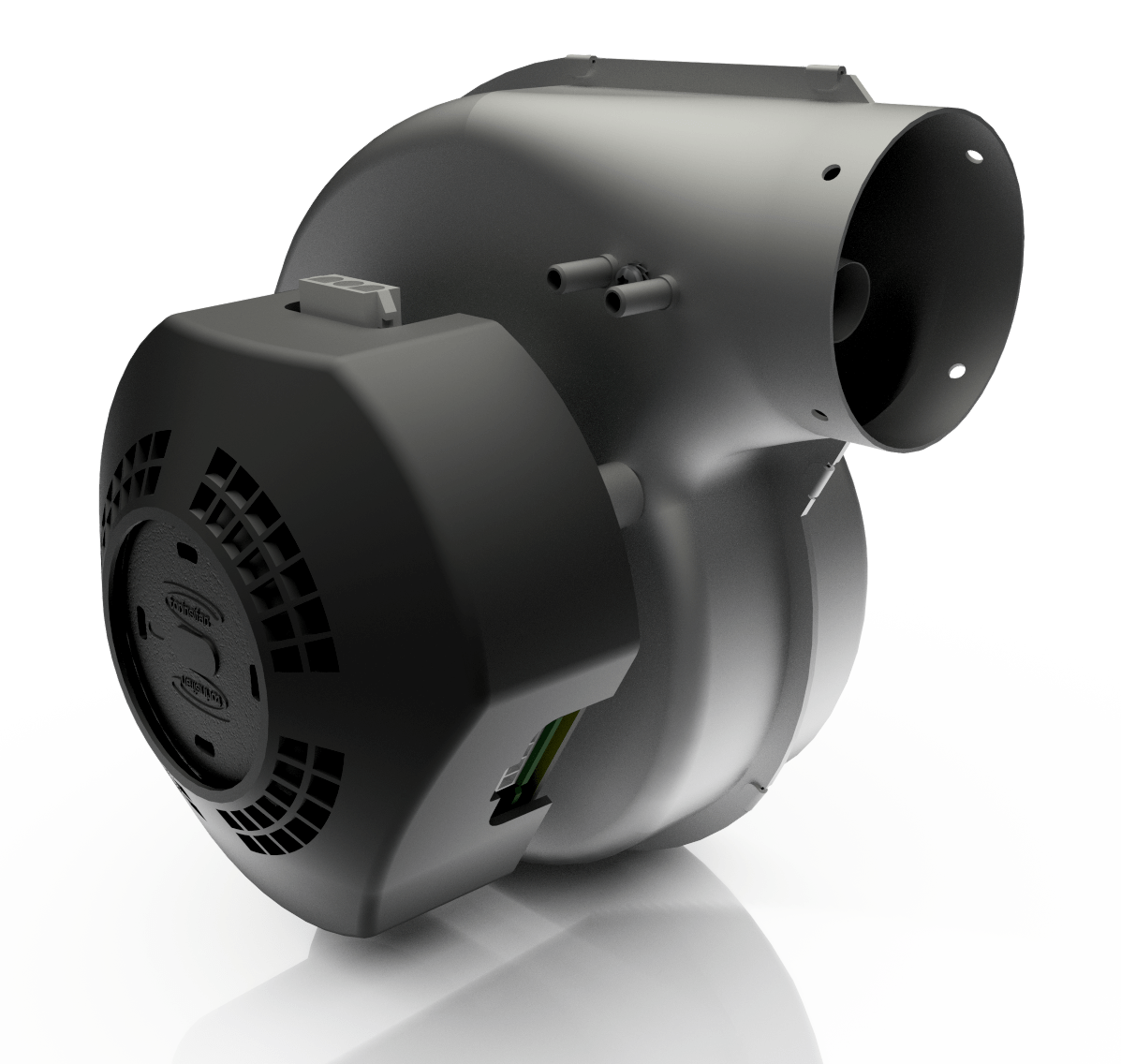

108-042 (27W) 108 | 230 / 1 / 50 | 172 | 0.3 | 27 | 2800 | NA | 0 | B | 0 to +250 | 1.45 |
120-062 (90W) 120 | 230 / 1 / 50/60 | 297 | 0.58 | 69 | 3500 | 57 | 20 | B | -20 to +40 | 2.6 |
180-042 (170W) 180 | 230 / 1 /50/60 | 397 | 1.2 | 130 | 3000 | 53 | 20 | B | -20 to +40 | 3.5 |
108-042 (63W) 108 | 24 | 213 | 3 | 63 | 4695 | NA | 0 | B | 0 to 250 | 1.35 |
108-042 (43W) 108 | 24 | 177 | 1.9 | 43 | 4089 | NA | 0 | B | 0 to 250 | 1.35 |
